Achiever Charbroiler, countertop, 36", (6) cast iron 17,000 BTU burners with standing pilots & cast iron radiants, heat deflector tray, supercharger burner dividers, high range infinite heat control valves, fully welded chassis, stainless steel front, sides, top trim, backsplash & grease trough, cast iron top grates, 4" adjustable legs, 102,000 BTU, CSA, NSF

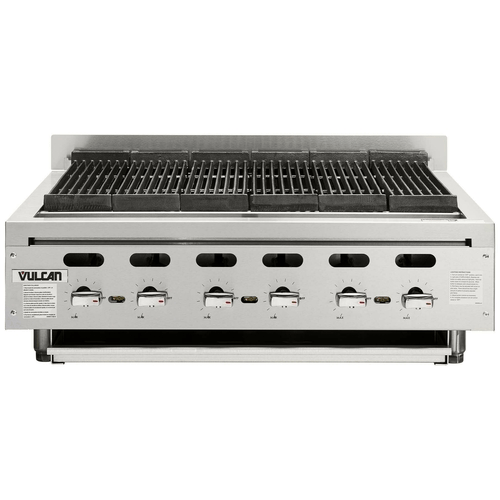

The VACB36 is the 36" wide countertop 6-burner heavy-duty gas charbroiler from Vulcan with 17,000 BTU cast iron burners with individual infinite heat controls and 1 drip tray. This countertop commercial gas charbroiler stands firmly on a set of 4" adjustable legs.
The charbroiler is operated with an individual high-range infinite heat control valve on each burner with adjustment marks engraved into front panel to adjust temperatures up to 700 degrees F with a standing pilot.
There is an all-welded chassis on this charbroiler with the sides, control panel, top trim, backsplash and grease trough all constructed from durable, corrosion-resistant stainless steel that will stand up to the daily usage of a commercial kitchen environment.
There are under-burner heat deflector panels on this charbroiler that reflects heat upwards and protect the base from damage. This commercial gas charbroiler is CSA Blue Flame certified, CSA Design certified, and it is NSF listed for safety.
The supercharger burner dividers on this charbroiler provide exceptional heat distribution across the entire cooking surface as well as minimize the heat transfer between zones for precise multi-zone cooking.
This VACB36 commercial gas charbroiler operates on Natural Gas at 17,000 BTU per burner for a total of 102,000 BTU/hr and it has a 3/4" NPT rear gas connection and it comes included with a pressure regulator. All plumbing, gas, or electrical connections should always be made by qualified personnel who will follow all of the proper plumbing, sanitary, and safety codes and guidelines.
Vulcan VACB36_NAT Features
- Achiever Charbroiler
- Material: Stainless Steel
- Color: Silver
- Power: Natural Gas
- Total BTU: 102,000
- Burners: 6
- (6) 17,000 Cast Iron Burners
- Supercharger Burner Dividers
- Heavy Duty Cast Iron Char-Radiants
- 5-1/4" Wide Cast Iron Diamond Grates
- (1) Infinite Heat Control Valve Per Burner
- Stainless Steel Front, Sides, And Top Trim
- Standing Pilot Ignition System
- Heat Deflector Tray System
- Fully Welded Chassis
- (1) Drip Tray
- 3/4" Rear Gas Connection
- Gas Pressure Regulator
- 4" Adjustable Legs
- CSA Listed
- NSF Listed
Vulcan VACB36_NAT Benefits
- Sturdy stainless steel construction helps ensure longevity
- Adjustable legs provide a great working height
- Heat deflectors create a "Cool Zone" for the grease drawer
Overall Dimensions:
Width: 36"
Depth: 31"
Height: 15-1/2"
